Product Overview

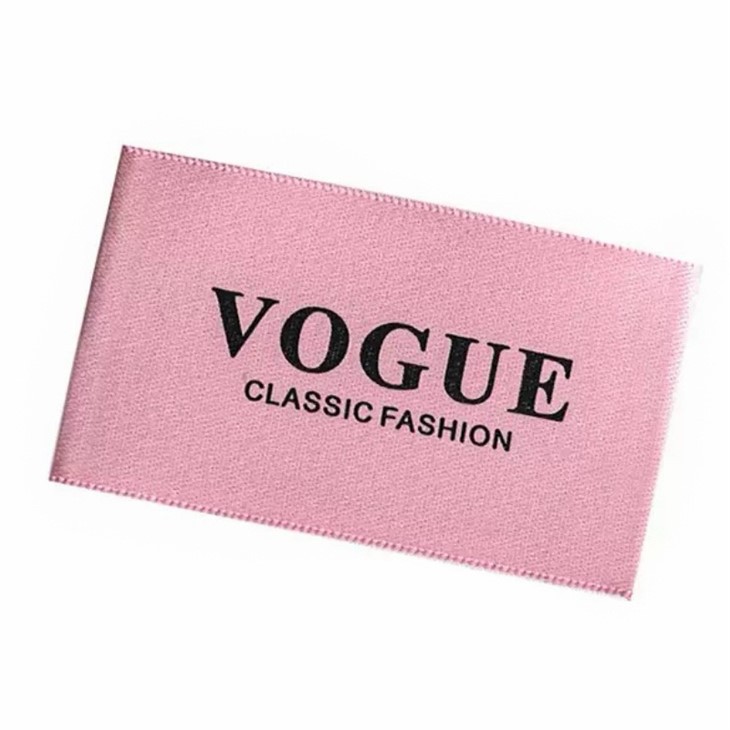

Flat Woven Labels are garment labels made by weaving polyester yarn into a smooth, flat surface that carries brand names, sizes, care information and logo details. They are sewn into necklines, side seams, hems, apparel accessories and private-label garments.

Specifications

Specification	Details
Yarn Material	100% polyester yarn
Weave Options	High-density damask, satin or taffeta weave
Typical Width Range	10-200 mm
Typical Height Range	8-80 mm
Yarn Colors	1-12 colors per design
Minimum Text Height	1.5 mm
Fold Options	Straight cut, end fold, center fold, mitre fold or loop fold
Edge Finish	Heat cut, ultrasonic cut or woven edge
Sewing Allowance	5-7 mm per sewing side
Size Tolerance	+/- 1 mm
Color Matching	Pantone color reference

Use details

Tight weaving keeps small lettering, size marks and care symbols clear on neck labels and side-seam labels, so garment information remains readable even on compact labels.

The smooth, low-profile surface lies flat against the garment in skin-contact positions, reducing the bulk created by raised badges or thick sewn labels.

Controlled cutting and folding produce consistent sewing edges for garment production lines, so labels align evenly across repeated styles and size runs.

Custom order notes

Logo and Text:

Brand name, size, care symbols, origin text and decorative label artwork.

Yarn Color:

Single-color, two-color and multi-color woven designs.

Size and Shape:

Narrow, wide, long, short, rectangular, die-cut and shaped label formats.

Fold and Edge:

Straight cut, end fold, center fold, mitre fold, heat cut and fast-edge options.

Packing:

Sorted bundles, plastic bags, cartons, barcode labels and size/color-separated packing.

Factory checks

Inspection covers small-text legibility, yarn color matching, edge fraying, fold accuracy, label size, surface cleanliness and batch consistency. Wash and rub checks are used for garment-label orders so the woven text and color remain stable through normal garment handling.

Questions before ordering

Q: What artwork produces the clearest woven result?

A: Vector artwork with solid color areas, clean lettering and separated design elements produces the most accurate weave conversion.

Q: Can gradients or photographic details be woven?

A: Continuous gradients and photographic shading are converted into simplified color blocks because woven yarn cannot reproduce pixel-level tonal transitions.

Q: Which fold keeps cut ends away from the skin?

A: Center-fold and end-fold constructions place the cut ends inside a seam, which works better for neck and other skin-contact positions.

Q: How are repeat-order colors matched?

A: Pantone references, the approved artwork and the approved production sample are used together to control yarn colors on repeat orders.
